Visual DAQ DaqPlaner™
Planar Data Analytics & Real-Time Monitoring
Visual DAQ DaqPlaner is a real time data-center monitoring software. This is an advanced
live data acquisition (DAQ), two-dimensional spatial analysis, and Desktop PC based heat-map
generator software.
See a video demo at Multi-point temperature
analysis.

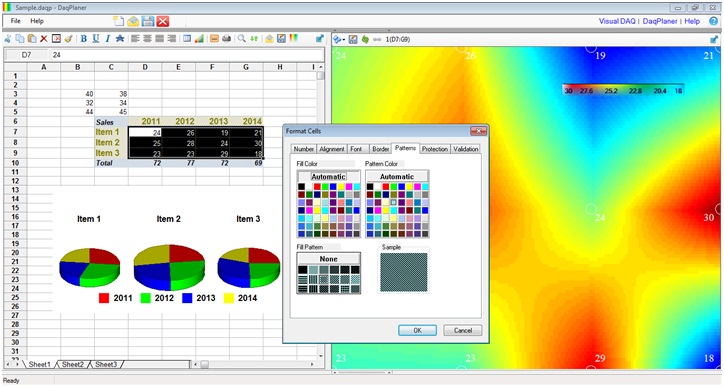

DaqPlaner can be used either to manually input, or to continuously acquire data from external data
sources, and to create gradient charts (heat maps) and other spatial charts of rectangular data
zones. It is a document based (*.daqp) data analysis system for multi-point analysis.
Downloads & Resources
DaqPlaner Standard (manual data entry) is FREE for your personal use.
Purchase for commercial use.
Features
- Live Data-Center Monitoring: Continuous (real-time) multi-point
environmental monitoring and analytics system. See Help &
Screenshots for more information.
- Analytics: Different statistics (average, maximum, minimum, SD, moving
average etc) are available for the collected data. Inset charting and formulas are available
within the spreadsheet.
- Advanced but Simple-to-Use: DaqPlaner has many advanced features like
historical analysis, but all features are easy to configure and simple to use.
- Manual Data Entry: You can also manually enter 2-dimensional data into the
spreadsheet and can chart its spatial distribution.
- Flexibility: You can copy/paste data between DaqPlaner and external data
sources like an MS Excel file. You can also read an XLS file into the spreadsheet and export
back to XLS.
- Professional Edition: Has an HTML rich editor & automatic two-way
charting of the selected rectangular data (below the gradient chart). Support for analysing
multiple data zones.
- DaqReady™ Edition: Can connect to external data sources (database,
JSON/XML files etc.) and data acquisition (DAQ) systems. Also has time-series analysis and
historical analysis.
- DaqPlaner is a document-based system. You can create and save new daqp documents, and work
on multiple documents at a time.
- Microsoft Excel is not required to be installed on the machine.
Comparison of DaqPlaner Editions
| Edition |
Spreadsheet |
Gradient Analysis |
Inset Charting |
2-Way Charting |
HTML Rich Editor |
External DAQ |
|
Standard
|
✅ |
✅ |
✅ |
❌ |
❌ |
❌ |
|
Professional
|
✅ |
✅ |
✅ |
✅ |
✅ |
❌ |
|
DaqReady™
|
✅ |
✅ |
✅ |
✅ |
✅ |
✅ |
Standard edition is FREE for personal use.
Purchase for commercial use.
Standard/Professional edition works on manual (user) data entry, like a spreadsheet.
DaqReady™ edition additionally can connect to external data sources and DAQ systems.
Sensor Manufacturers & DAQ Resellers
Providing Data-Center Visibility using DAQ Systems
If you are interested that DaqPlaner supports your environmental monitoring
systems (Data Server, OPC etc.) or sensor networks (USB, Ethernet, Wireless etc.) and/or DAQ
hardware (hub, zone etc.), please contact us.
See demo downloads at DaqReady page.
System Requirements & Customization
System Requirements: (32-bit / 64-bit), Windows XP SP3 or Above, .NET Framework 4.0 or
Above.
Customized Versions: If you need a customized version
according to your requirements, please contact us.
